Hubbell
MFR #BIT4
UPC #781810134146

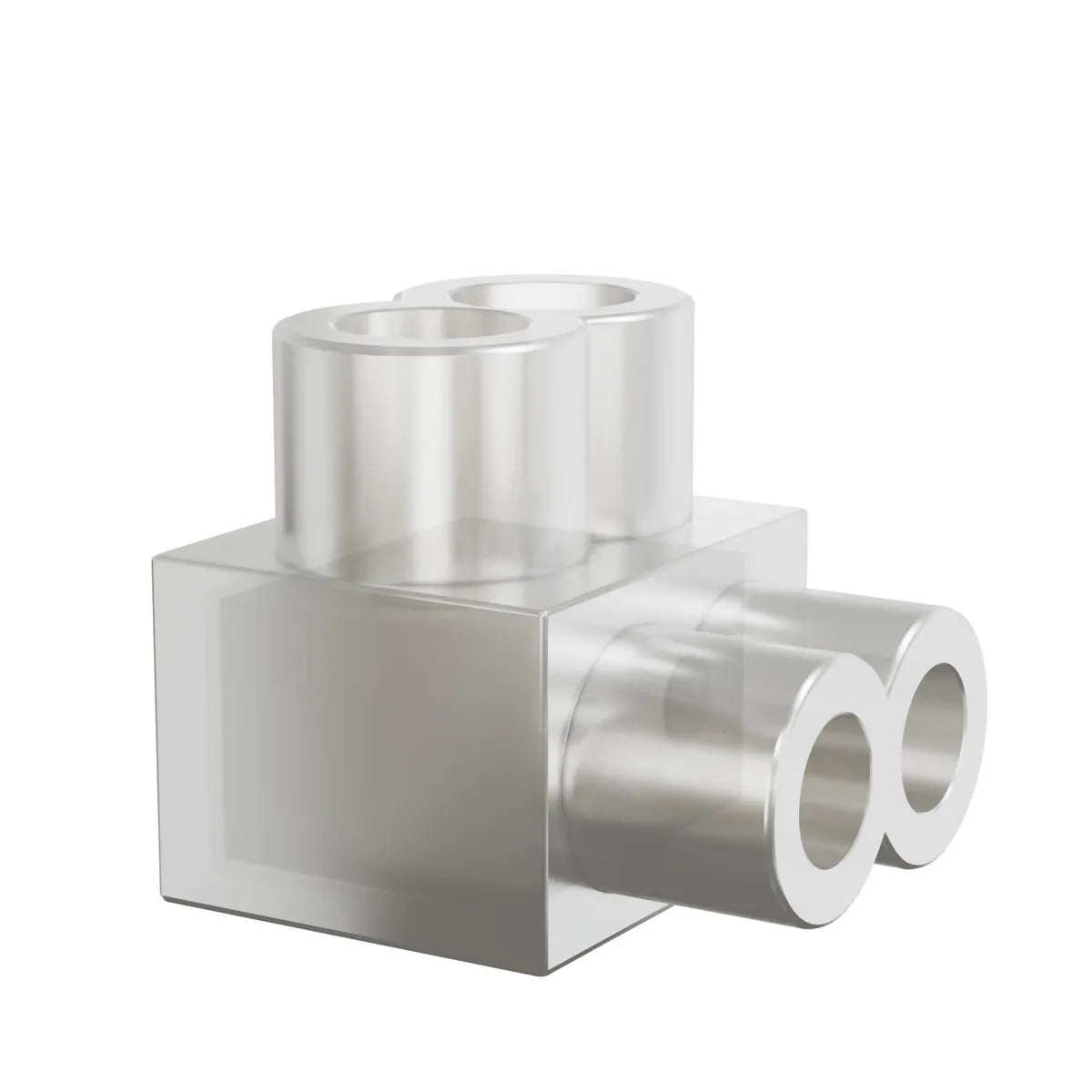

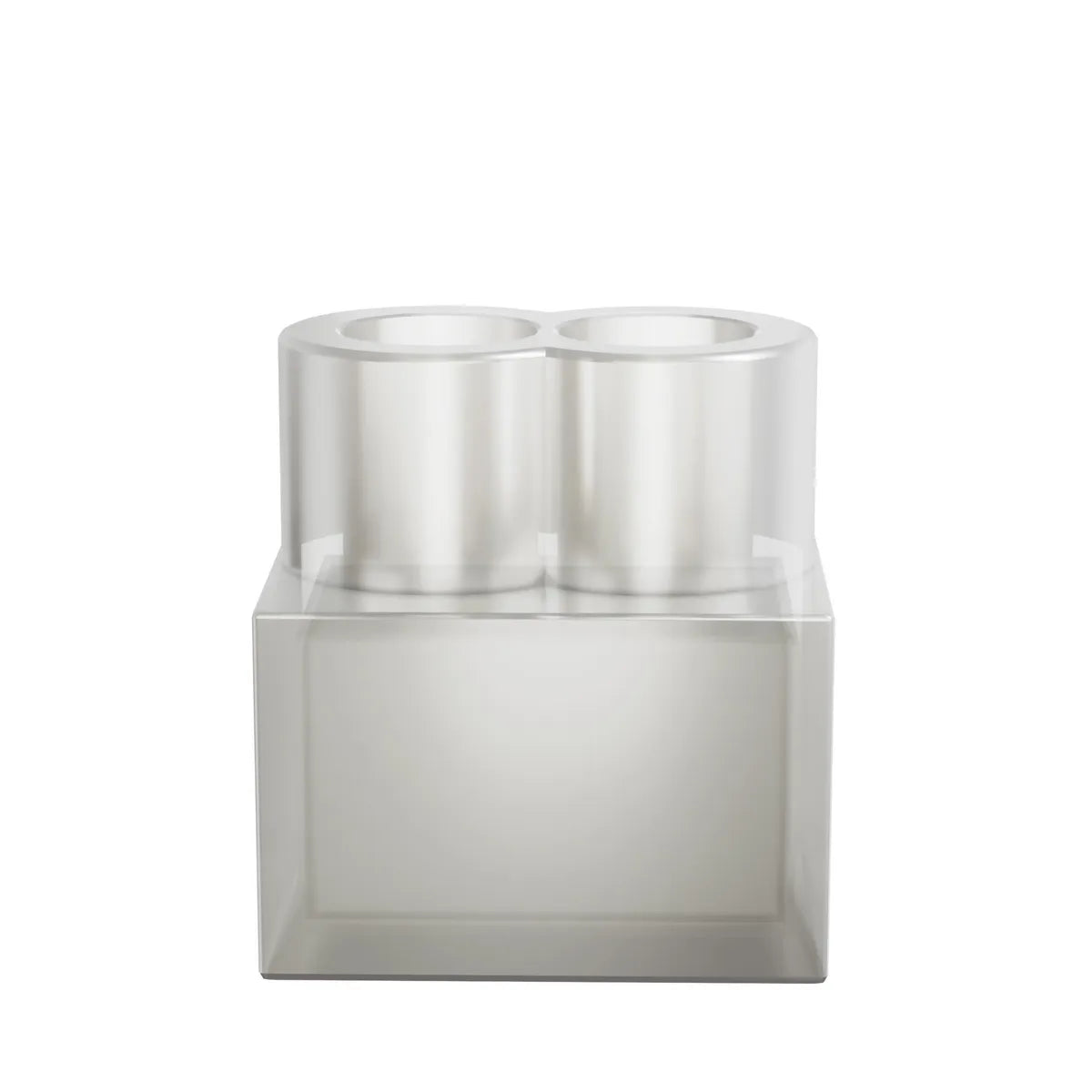

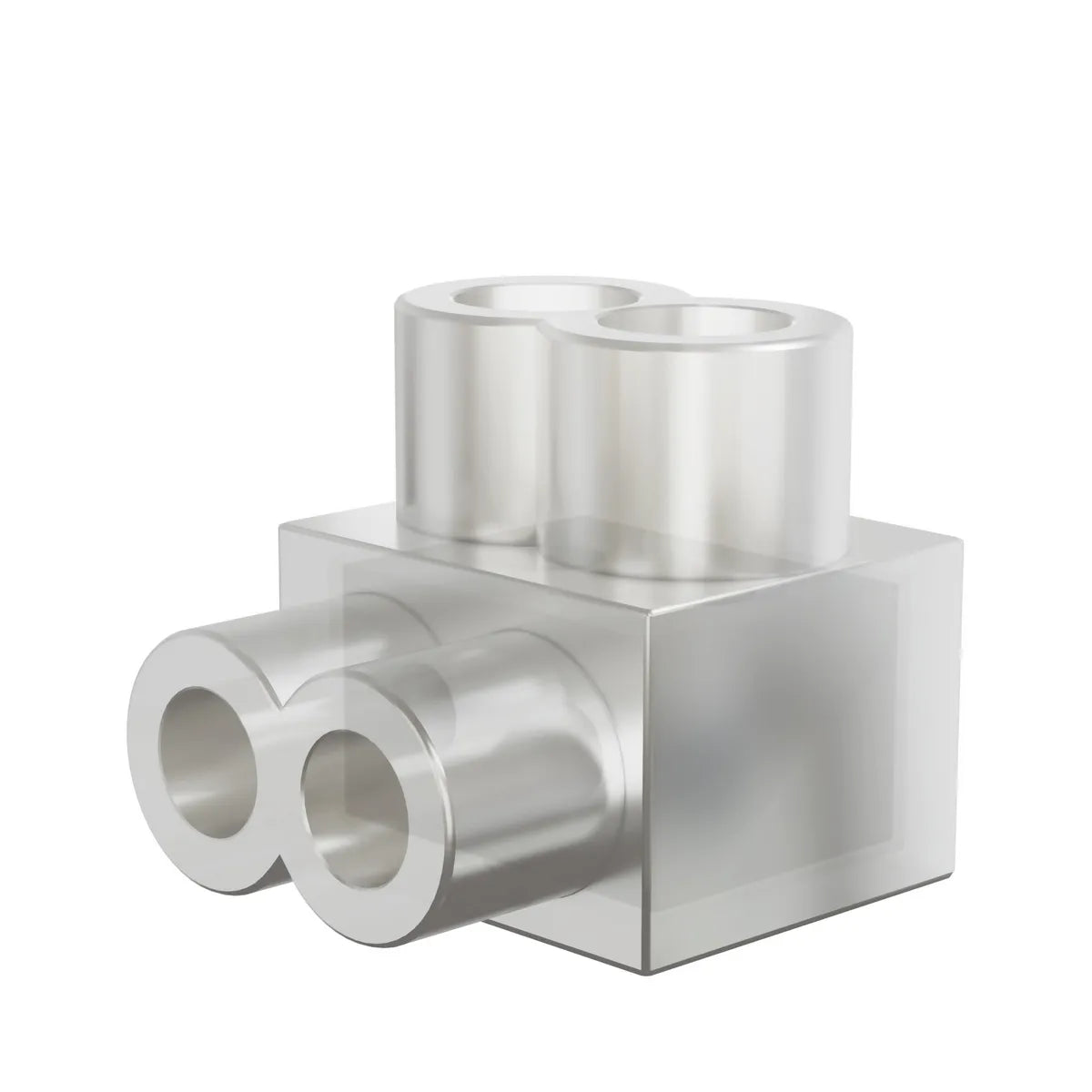

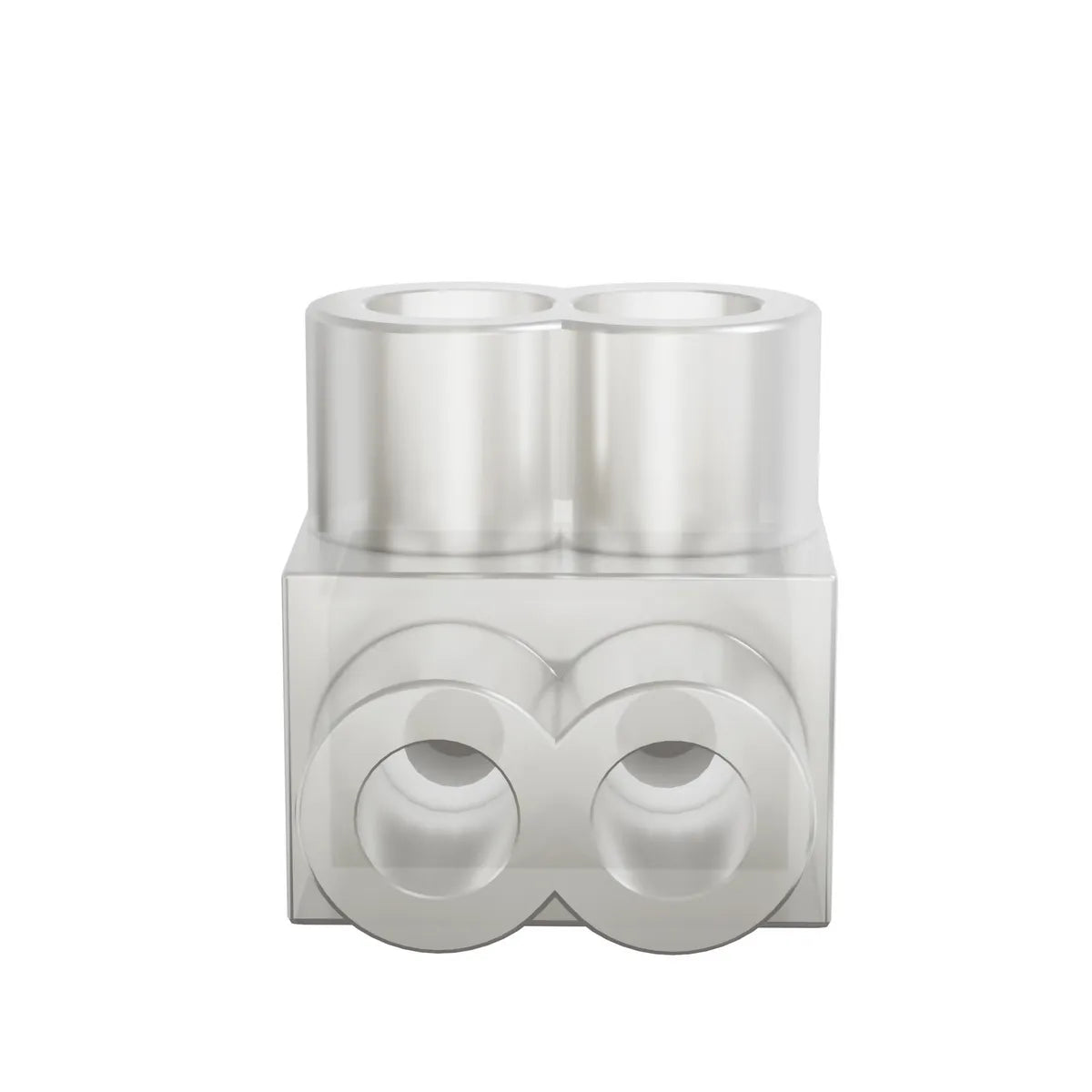

Hubbel Burndy 1-Side 2 Conductor Clear Insulated Multi-Tap Connector, Model BIT4
$52.33
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
Make indoor run/tap connections quickly with this clear-insulated, two-port multi-tap connector. Single-side conductor entry simplifies installation, while the plastisol-covered aluminium body supports copper or stranded aluminium code conductors for electrical wiring work.
Specifications
| Connector Type | Mechanical multi-tap, run/tap |
| Product Line | UNITAP™ |
| Application | Indoor use only; copper or stranded aluminium code conductors |
| Conductor Entry | Single-side entry |
| Number of Ports | 2 |
| Conductor Size Range | 14–4 AWG |
| Listed Stranded Copper Sizes | 14, 12, 10, 9, 8, 7, 6, 5 and 4 AWG |
| Listed Stranded Aluminium Sizes | 8, 6 and 4 AWG |
| Conductor Rating | Dual-rated AL9CU |
| Body and Hardware Material | Aluminium |
| Insulation | Clear plastisol |
| Finish | Unplated |
| Screws | 2 Allen screws |
| Hex Key Size | 1/8 in |
| Recommended Installation Torque | 45 in-lb |
| Maximum Voltage | 600 V |
| Temperature Rating | 90 °C |
| Listing | UL486B |
| Length | 1.08 in (27 mm) |
| Width | 1.16 in (29 mm) |
| Height | 1.25 in (32 mm) |
