3M CANADA
MFR #ITCSN-1100-48-BULK
UPC #7000132159

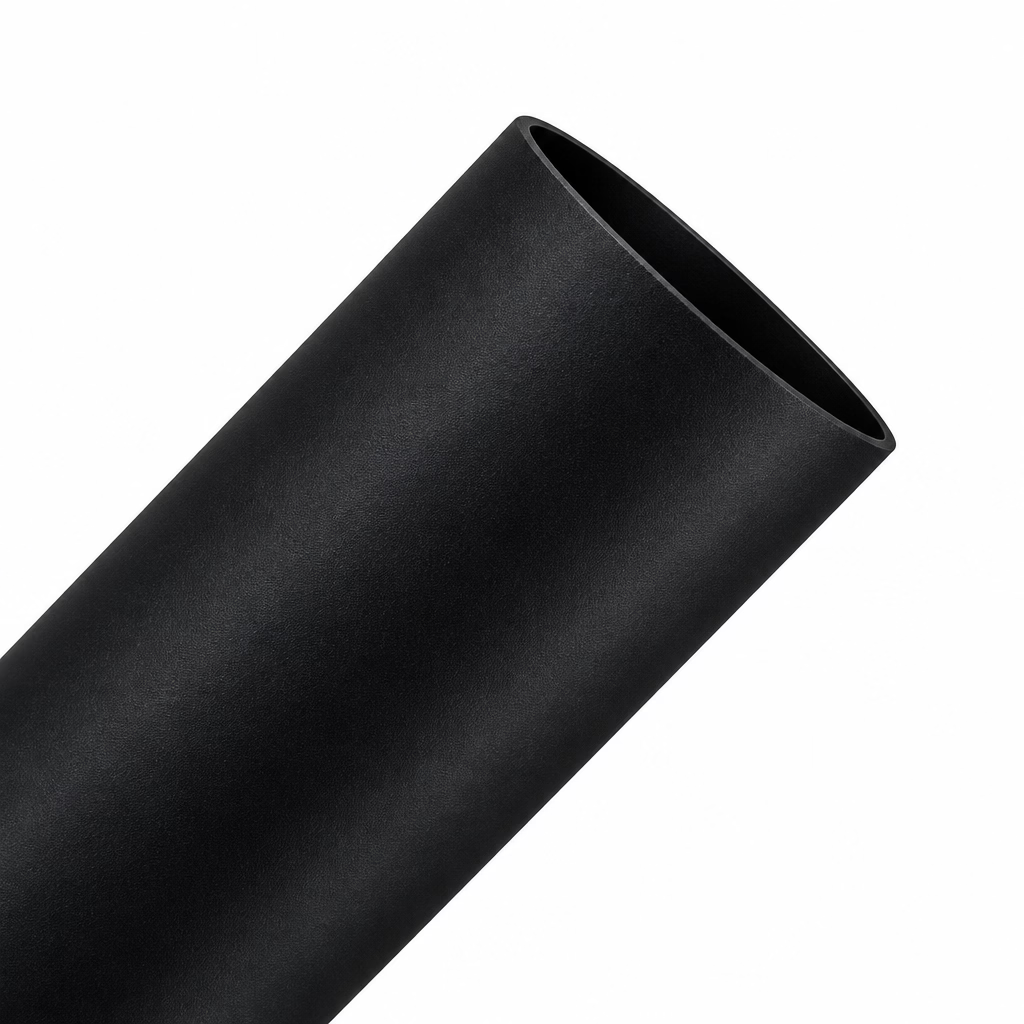

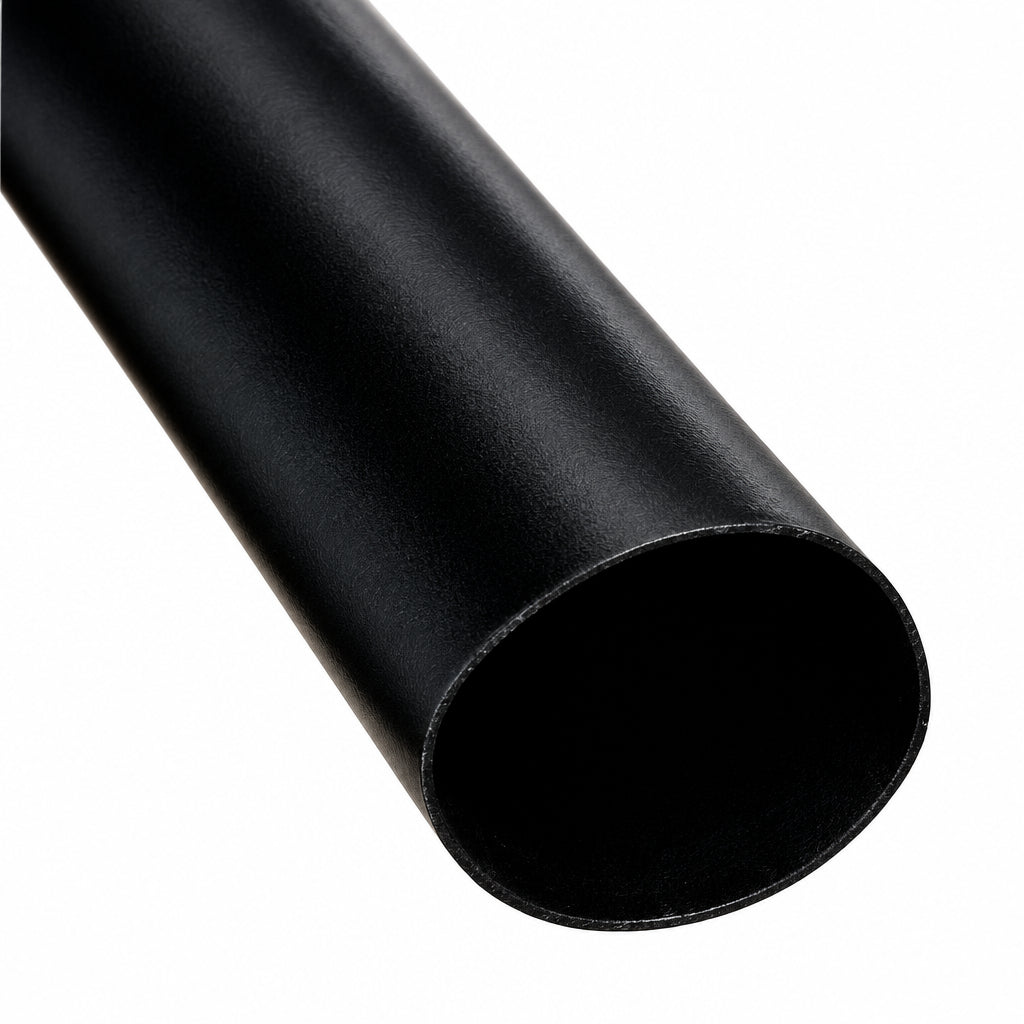

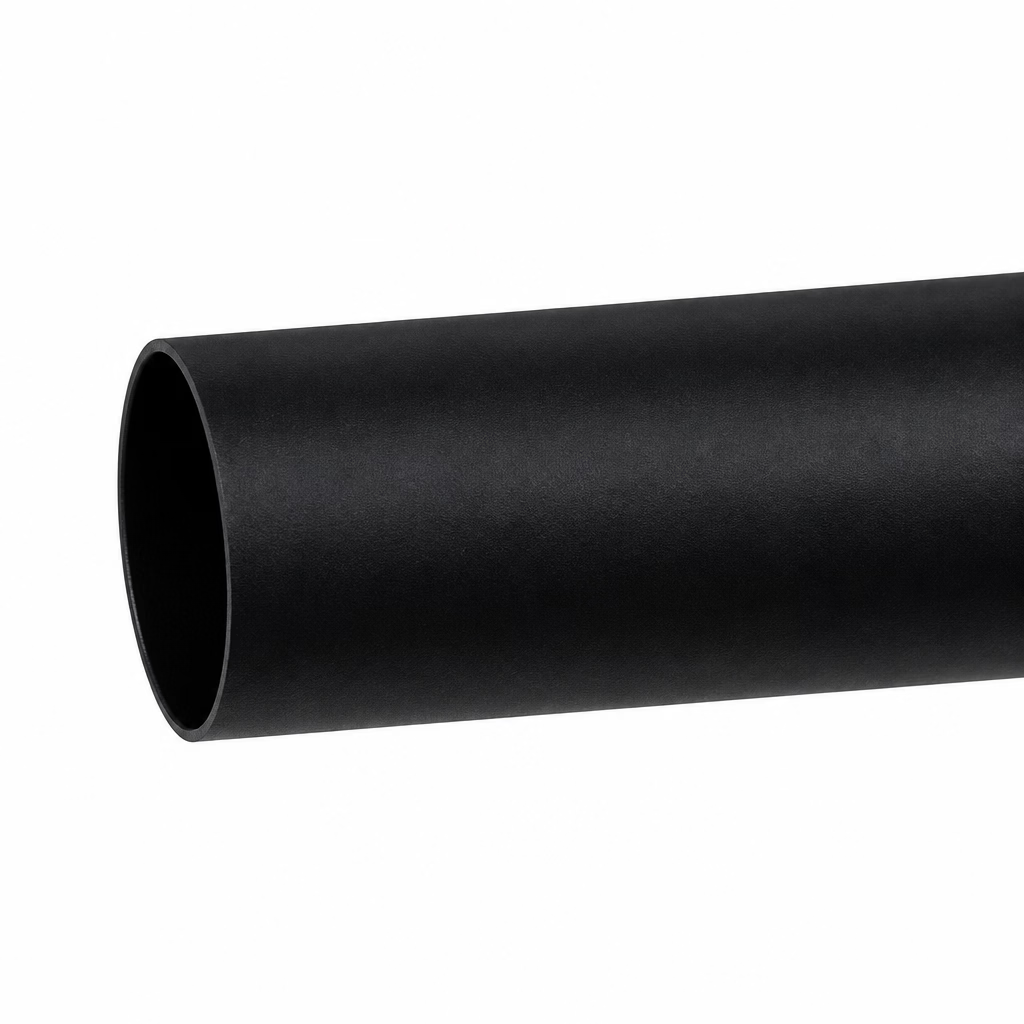

3M Heat Shrink Tubing – 1.1 in Diameter, 48 in Bulk
$72.67
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
Protect electrical splices, connections and terminations with 3M heavy-wall heat shrink tubing that provides insulation and mechanical and environmental protection. Split-resistant, cross-linked polyolefin shrinks quickly, while a factory-applied adhesive/sealant helps seal cable repairs. Cut-to-length sleeves suit secondary splices, direct-buried and submersible repairs, and protection of air-insulated connectors or lugs.
Specifications
| Brand | 3M |
| Tubing Type | Heavy-wall heat shrink sleeve |
| Material | Cross-linked polyolefin |
| Adhesive Lining | Factory-applied hot-melt adhesive/sealant |
| Colour | Black |
| Shrink Ratio | 4:1 |
| Overall Length | 48 in (1219 mm) |
| Conductor Sizes | 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG; 35–120 mm² |
| Voltage Rating | UL rated to 600 V; shall not exceed 1 kV |
| Dielectric Strength | 500 V/mil |
| Operating Temperature Range | -55 °C to +110 °C |
| Tensile Strength | 2400 psi |
| Direct Burial Suitable | Yes |
| Non-Corrosive | Yes |
| Flame Retardant | No |
| Certifications and Compliance | UL Listed; CSA Certified; RoHS 2011/65/EU compliant |
| Military Specification | SAE-AMS-DTL-23053/15, Class 1 |
| UL File Number | E-102356 |
| Manufacturer Case Quantity | 20 |
