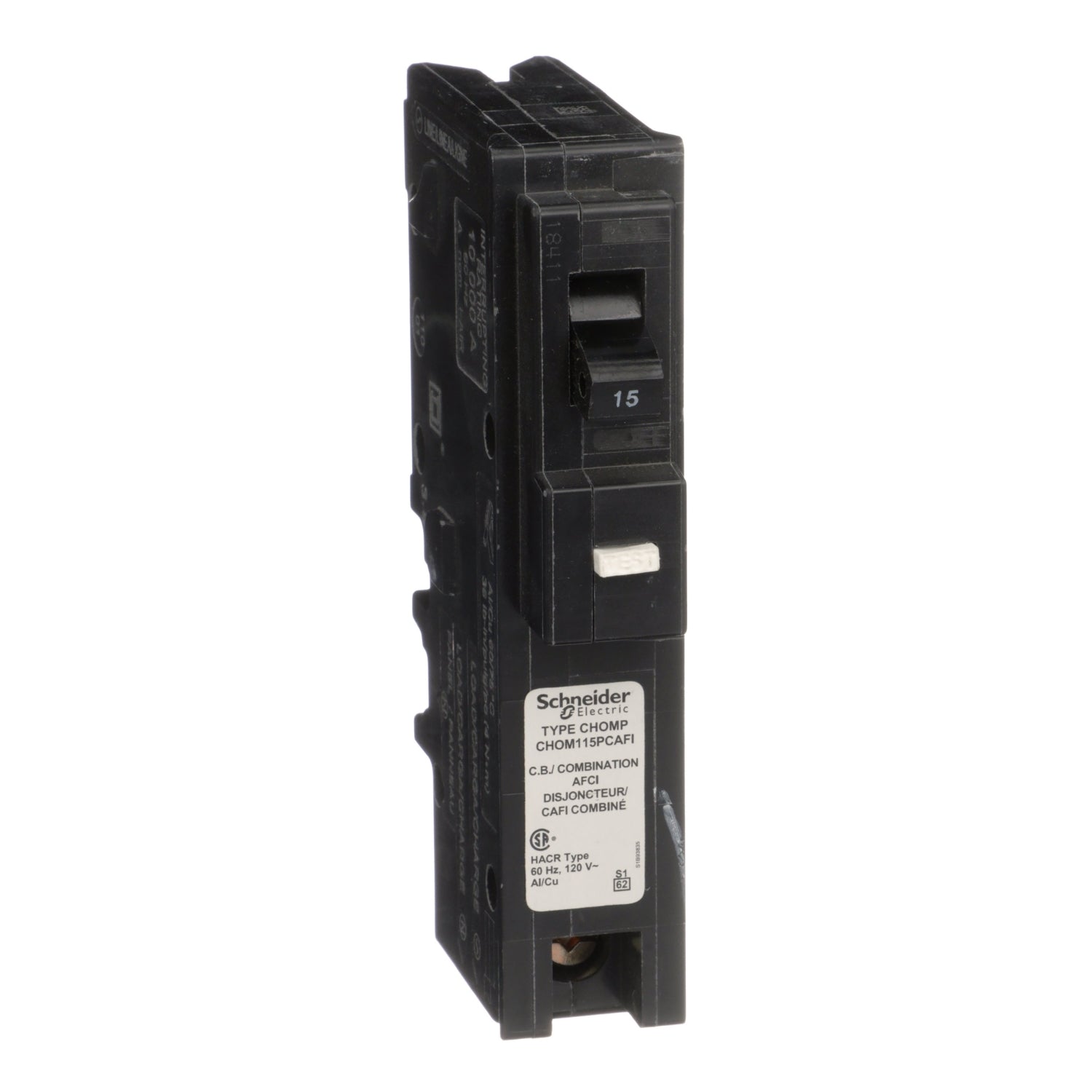

1P 15A Arc Fault Homeline Breaker No Pig Tail, Model CHOM115PCAFI
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
The Schneider Electric CHOM115PCAFI is a 1-Pole 15 Amp Combination Arc Fault Circuit Interrupter (CAFI) breaker designed for Homeline load centres — the go-to choice for electricians and contractors who need fast, reliable arc fault protection on residential and light commercial jobs. Whether you're upgrading a panel to meet current CEC arc fault requirements, finishing a bedroom circuit, or roughing in a new build, this breaker plugs directly into Homeline load centres with no pigtail required. The plug-on neutral design eliminates a wiring step and speeds up installation, while the clamp terminal accepts 14 AWG to 8 AWG copper or aluminum wire for flexibility across a range of circuit configurations. CSA certified and HACR rated, it delivers the code compliance and breaking capacity that professionals depend on. Available for shipping across Ontario.
Key Features
| Plug-On Neutral (No Pigtail) | Connects directly to the load centre neutral bar without a pigtail wire, reducing installation time and keeping the panel cleaner and easier to inspect. |
| Combination Arc Fault Protection | Detects both parallel and series arc faults in accordance with NEC and UL 1699 standards, providing the level of protection required by the CEC for bedrooms and living areas. |
| Dual-Wire Clamp Terminal | Accepts 2 conductors (14 AWG to 8 AWG copper or aluminum), giving contractors flexibility to multi-wire or extend circuits without additional hardware. |
Specifications
| Model Number | CHOM115PCAFI |
| Brand | Schneider Electric |
| Series | Homeline |
| Breaker Type | Combination Arc Fault Circuit Interrupter (CAFI) |
| Number of Poles | 1 |
| Amperage Rating | 15A |
| Voltage Rating | 120/240V AC |
| Breaking Capacity | 1 kA |
| Mounting Type | Plug-in |
| Neutral Connection | Plug-on neutral (no pigtail) |
| Terminal Type | Clamp — accepts 2 wires |
| Wire Range | 14 AWG to 8 AWG, copper or aluminum |
| HACR Rated | Yes |
| Certifications | CSA certified, UL 1699, NEC compliant |
| Compatible Load Centres | Schneider Electric Homeline |
| Dimensions (H × W × D) | 3.13 in. × 1 in. × 2.98 in. |
| Weight | 0.62 lbs |
| SKU | SQD-CHOM115PCAFI |
