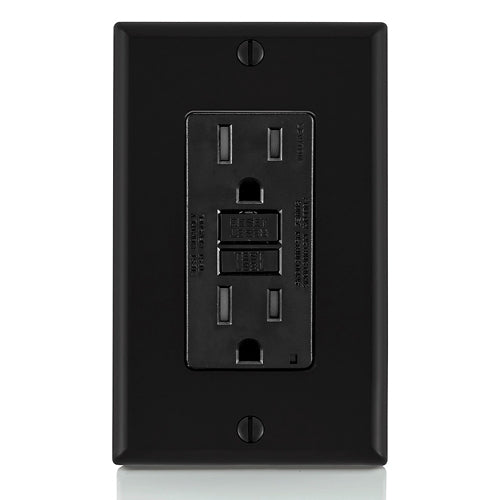

LEVITON SmartlockPro GFCI Receptacle – 15A, Black, Model GFTR1-E
LEVITON SmartlockPro GFCI Receptacle – 15A, Black, Model GFTR1-E
Pickup available at Independent Electric Supply
Usually ready in 4 hours
The Leviton SmartlockPro Self-Test GFCI Receptacle is engineered for professional electricians and contractors who need dependable ground fault protection on every job — from residential rough-ins and commercial fit-outs to wet locations, garages, and outdoor installations. With automatic self-testing that exceeds UL requirements, a patented lockout action, and reduced depth for easy installation in even shallow electrical boxes, this 15 Amp, 125 VAC tamper-resistant outlet keeps your work code-compliant and your clients protected. The back and side wiring options with external clamps for visual wire seating confirmation speed up installation, while the included wallplate means one less item to source on site. Rated to Residential/Commercial Specification Grade and carrying UL/CSA and Fed Spec WC-596 certifications, this is the GFCI you can spec with confidence on any project.
Specifications
| Brand | SmartlockPro |
| Amperage | 15 A |
| Voltage | 125 VAC |
| NEMA Configuration | 5-15R |
| Poles / Wires | 2 Pole / 3 Wire |
| Grade | Residential/Commercial Specification Grade |
| Colour | Black |
| Tamper Resistant | Yes |
| Self-Test Feature | Yes – Automatic |
| Trip Level | Class A, 5mA ± 1mA |
| Short Circuit Current Rating | 10KA |
| AC Horsepower Rating | 1 HP at Rated Voltage |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Operating Temperature | -35°C to +66°C |
| Temperature Rise | Max 30°C after 100 cycles OL at 150% rated current |
| Flammability Rating | V-2 per UL 94 |
| Termination | Back & Side Wire |
| Terminal Accommodation | 14–10 AWG |
| Terminal Identification | Brass – Hot, Green – Ground, Silver – Neutral |
| Screw Terminal Torque | 14–18 in-lbs |
| Grounding | Self-Grounding (Standard Brass Clip) |
| Body Material | Polycarbonate |
| Face Material | Thermoplastic |
| Line Contacts | Brass Double Wipe, .031" Thick |
| Clamps | Brass |
| Terminal Screws | Plated Steel |
| Grounding Screw | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Strap Material | Galvanised Steel |
| Wallplate | Included |
| UPC | 078477487150 |
| Standards & Certifications | UL 943 (File E48380), UL498, CSA C22.2 No. 42, CSA-C22.2 No. 144.1-06 (File LR-57811), NEMA WD6, ANSI C-73, Fed Spec WC-596, MIL-SPEC A-A-55459-SB, NOM |
| Warranty | 2-Year Limited |
